When upgrading wheels, most people focus on diameter, width, offset, bolt pattern, and tire size. Those details are important, but there is another part of the install that is just as critical: the lug nut seat type.
The lug nut seat is the part of the lug nut that makes contact with the wheel. It is what helps center the wheel, apply proper clamping force, and keep everything secured once the lug nuts are torqued down. If the lug nut seat does not match the seat design of the wheel, the wheel may not clamp properly, even if the thread size and bolt pattern are correct.
At Fitment Dynamics, we always verify the correct lug nut style before installing aftermarket wheels. Using the wrong lug nut can damage the wheel, create improper contact, cause loosening, and lead to unsafe driving conditions.

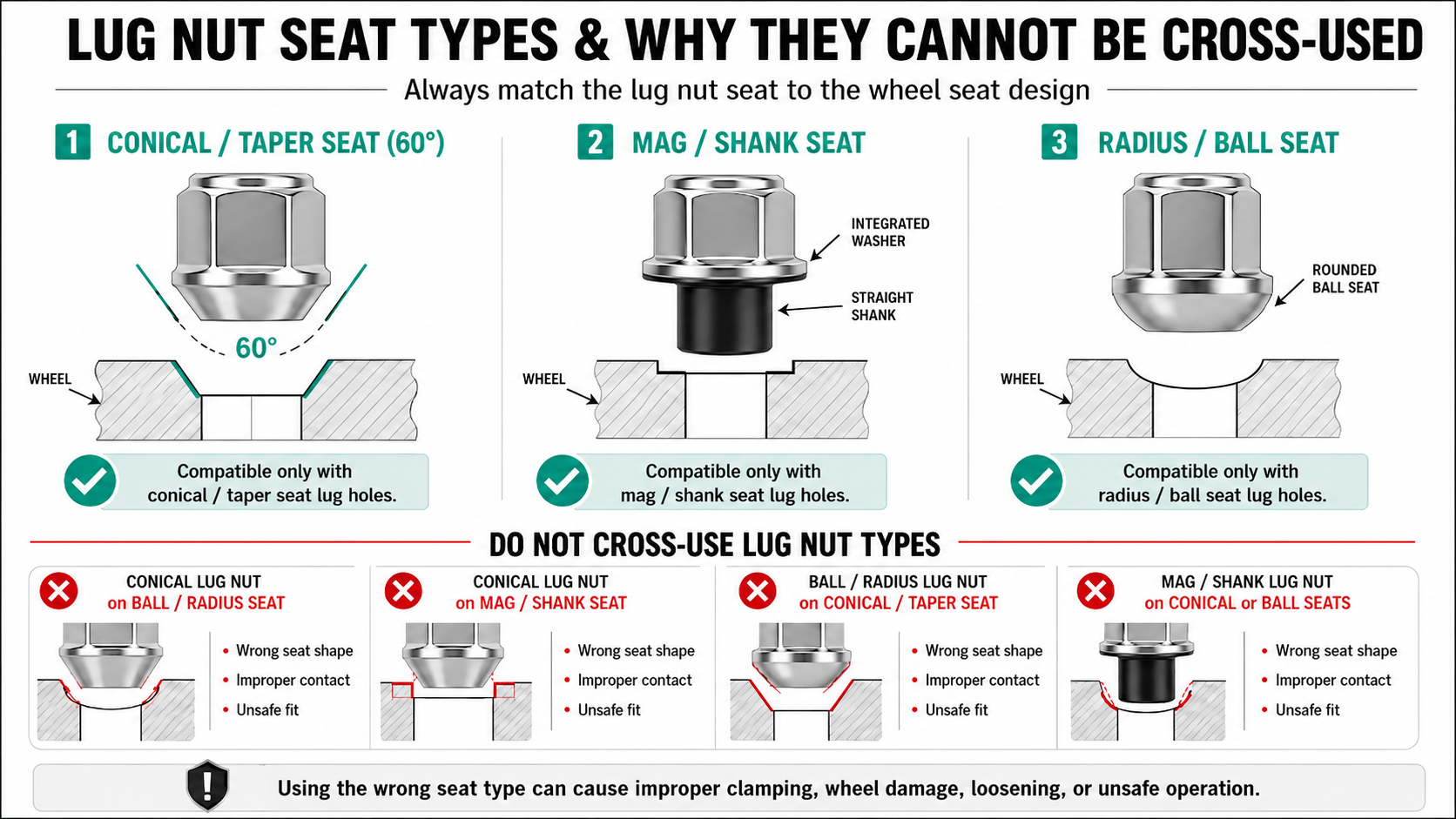

The Three Main Lug Nut Seat Types
Most passenger vehicles, trucks, SUVs, and aftermarket wheels use one of three common lug nut seat types.
1. Conical or Taper Seat Lug Nuts
Conical seat lug nuts are one of the most common types used on aftermarket wheels. They have a tapered seat, usually a 60 degree angle, that matches a tapered lug hole in the wheel.
When installed correctly, the tapered lug nut sits into the matching conical seat of the wheel. This creates proper contact around the seat area and helps center the wheel on the studs.
Conical lug nuts should only be used with wheels that have conical or taper seat lug holes.
They should not be used on ball seat wheels or mag seat wheels because the contact area will not match correctly.
2. Mag or Shank Seat Lug Nuts
Mag seat lug nuts are different from conical lug nuts because they use a straight shank and a flat washer style seating surface. Instead of tapering into the wheel, the shank goes into the lug hole and the washer clamps against a flat surface on the wheel.
This style is commonly found on certain OE wheels and specific aftermarket applications that are designed for mag style hardware.
Mag or shank lug nuts should only be used with wheels designed for mag or shank seat lug holes.
They should not be used on conical or ball seat wheels because the washer and shank design will not seat properly against those wheel profiles.
3. Radius or Ball Seat Lug Nuts
Radius seat lug nuts, also called ball seat lug nuts, have a rounded seating surface. This rounded profile is designed to match a wheel with a curved ball seat lug hole.
Ball seat lug nuts are commonly found on certain European and OE applications, depending on the vehicle and wheel design.
Radius or ball seat lug nuts should only be used with wheels that have radius or ball seat lug holes.
They should not be used on conical or mag seat wheels because the rounded seat will not make proper contact with the wheel.
Why Lug Nut Seat Types Cannot Be Cross Used
Even if a lug nut threads onto the stud correctly, that does not mean it is safe to use.
The thread size only confirms that the lug nut can screw onto the stud. It does not confirm that the lug nut seat matches the wheel.
When the wrong seat type is used, the lug nut may only touch the wheel in a small area instead of seating evenly. This can create several problems:
- Improper clamping force
- Uneven pressure on the wheel
- Wheel seat damage
- Lug nut loosening
- Vibration while driving
- Potential wheel separation
This is why the seat type matters just as much as the thread size.
For example, a conical lug nut on a ball seat wheel will not match the rounded profile of the lug hole. A ball seat lug nut on a conical wheel will not properly sit into the taper. A mag seat lug nut on a conical or ball seat wheel will not clamp the same way because the shank and washer design require a flat seating surface.
Each lug nut seat type is designed for a specific wheel seat profile. They are not interchangeable.
How to Know Which Lug Nuts Your Wheels Need
The correct lug nut depends on the wheel design. Before installation, you should verify:
- The vehicle thread size
- The wheel bolt pattern
- The lug nut seat type
- The lug nut length
- The wheel’s lug hole diameter
- The required torque specification
- The wheel’s hub bore and centering method
Aftermarket wheels often require different lug nuts than the original factory wheels. That means the factory lug nuts are not always safe or correct for a new wheel setup.
This is especially important when switching from factory wheels to aftermarket wheels, installing forged wheels, changing wheel brands, or upgrading to a more aggressive truck fitment.
Fitment Dynamics Verifies Lug Hardware Before Installation
At Fitment Dynamics, proper wheel and tire fitment goes beyond simply bolting the wheels onto the vehicle. We verify the details that affect safety, drivability, and long term performance.
That includes checking the correct lug nut seat type, confirming proper torque specs, making sure the wheel clears the brakes, verifying hub fitment, and reviewing the overall wheel and tire setup before the vehicle leaves our shop.
The right wheel setup should not only look good. It should fit correctly, drive correctly, and be installed with the right hardware.
Final Takeaway
Conical, mag, and radius lug nuts are all designed for different wheel seat profiles. They cannot be safely cross used.
A lug nut may thread onto the stud, but if the seat does not match the wheel, the installation is not correct. Using the wrong lug nut seat type can cause improper clamping, wheel damage, loosening, vibration, or unsafe operation.
Before installing new wheels, always confirm that the lug nut seat matches the wheel seat design.
