2019 Toyota Tacoma Lifted with 17×9 Fuel Off-Road Gambit & 35×12.50R17 Tires

2019 Toyota Tacoma Wheel and Tire Setup

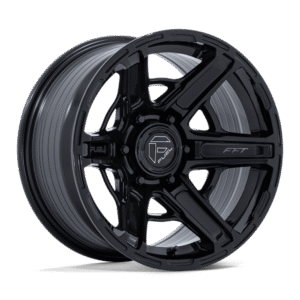

This 2019 Toyota Tacoma runs a square set of 17×9 Fuel Off-Road Gambit wheels finished in black and wrapped in 35×12.50R17 tires. The -12mm offset pushes the wheel and tire package substantially farther toward the fender line, while the lifted suspension provides the additional room needed for the much larger tire.

The 17 inch wheel diameter keeps plenty of tire sidewall in the setup, giving the Tacoma the proportions of a true off-road build rather than simply installing a larger diameter wheel. Combined with the wider 12.50 inch tire, the Gambit completely changes the stance of the truck.

Factory vs New Specs

Factory tire sizing on a 2019 Toyota Tacoma varies by trim, but common configurations are approximately 30.5 to 31 inches tall. Moving to a 35×12.50R17 tire represents a substantial increase in both overall diameter and section width.

Tire Height: A true 35 inch tire adds roughly 4 to 4.5 inches of overall diameter compared with many factory Tacoma tire sizes.

Ground Clearance: The increase in tire radius can add approximately 2 inches of clearance beneath the axle and differential before accounting for the additional height created by the suspension lift.

Wheel Size: The Fuel Gambit measures 17×9 with a -12mm offset. The 9 inch width provides a strong match for a 12.50 inch wide tire while retaining enough sidewall for off-road use.

Wheel Width: Compared with a common 17×7.5 factory-style wheel, the new wheel adds approximately 1.5 inches of total width.

Offset: A common factory Tacoma wheel sits around +25mm, while this Fuel Gambit uses a -12mm offset. That represents approximately 37mm of additional outward wheel centerline position per side.

Outer Wheel Position: When the lower offset and additional wheel width are combined, the outside edge of the 17×9 -12 wheel sits roughly 2.2 inches farther outward per side than a 17×7.5 +25 reference wheel.

Fitment and Stance

The combination of a 35 inch tire and negative offset wheel gives this Tacoma a dramatically wider footprint than the factory setup. The tires sit much closer to the outside of the fenders and can extend beyond the factory body line depending on tire construction and alignment.

The 35×12.50R17 also fills substantially more of the wheel opening vertically. The lifted suspension helps keep the larger tire proportional to the truck while creating the additional body and chassis clearance needed for off-road use.

This is an aggressive Tacoma fitment rather than a mild factory-plus upgrade. The wheel position, tire width and tire diameter all contribute to the finished stance.

Fitment Notes

Rubbing: Some rubbing should be expected with a 35×12.50R17 tire, especially at full steering lock or during suspension compression. Exact clearance depends on the tire model, alignment, ride height and suspension components.

Trimming: Front liner trimming, mud-flap removal or modification and additional clearance work may be necessary. Aggressive 35 inch setups can also require attention around the cab-mount or body-mount area depending on the final wheel position.

Poke: The 17×9 -12 wheel places the tire significantly farther outward than the factory setup. Expect a visibly aggressive stance outside the original wheel position rather than a deeply tucked fitment.

Lift: This particular Tacoma is lifted, which provides important additional clearance for the 35 inch tires. A lift alone should not be treated as a guarantee of rub-free fitment because wheel offset, tire dimensions and alignment also play major roles.

Stock Suspension: A 35×12.50R17 tire on a 17×9 -12 wheel is not a recommended stock-height fitment. Clearance requirements become significantly more difficult without suspension and body clearance modifications.

Ride and Drivability

The move to 35 inch tires increases rotating mass and overall tire diameter, which can make steering feel heavier and acceleration slightly slower than the factory setup. The taller tire also changes effective gearing, especially if the truck retains the original axle ratio.

The wider footprint and more outward wheel position give the Tacoma a broader stance, while the additional tire sidewall helps absorb rough surfaces and provides more flexibility for off-road driving.

Owners who regularly run 35 inch tires should also consider the effect of the larger diameter on gearing, braking, alignment and suspension components when planning the complete build.
