2019 Ford Mustang Stock Height with 19×9.5 & 19×10.5 TSW Imola and 275/30R19 & 305/30R19 Tires

2019 Ford Mustang Wheel and Tire Setup

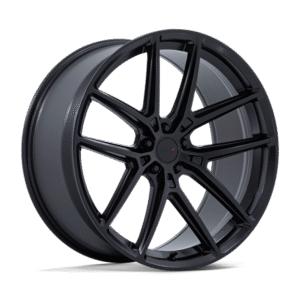

This 2019 Ford Mustang uses a staggered TSW Imola setup that gives the S550 chassis a wider and more performance focused stance while retaining the factory ride height. Finished in black, the TSW Imola brings a motorsport inspired appearance that works naturally with the aggressive lines of the Mustang.

Up front, the car runs 19×9.5 TSW Imola wheels with a +25mm offset wrapped in 275/30R19 Nitto tires. The rear steps up to 19×10.5 wheels with a +43mm offset and wider 305/30R19 tires. The staggered combination adds considerably more tire underneath the rear of the car while keeping the front responsive and visually balanced.

Factory vs New Specs

Factory 2019 Mustang GT wheel and tire specifications vary by trim and option package, with Performance Package cars commonly using 19 inch wheels and overall tire diameters close to 26 inches. This TSW setup keeps the overall tire diameter in a similar range while increasing wheel and tire width.

Front Wheel: The new setup uses a 19×9.5 wheel with a +25mm offset and a 275/30R19 tire.

Rear Wheel: The rear uses a wider 19×10.5 wheel with a +43mm offset and a 305/30R19 tire.

Tire Diameter: The new front and rear tire sizes remain close to the overall diameter of common factory 19 inch Mustang setups, so the change is focused more on width and stance than vehicle height.

Wheel Width: The wider front wheel gives the 275 tire a strong footprint while the 10.5 inch rear wheel properly supports the much wider 305 rear tire.

Offset: The +25mm front offset moves the wheel noticeably closer to the fender line. The +43mm rear offset is more conservative and helps keep the wider rear wheel positioned underneath the body.

Fitment and Stance

The staggered setup gives this Mustang a noticeably wider rear footprint without requiring a suspension drop. The 19×9.5 front wheel sits close to flush with the front fender, while the 19×10.5 rear wheel and 305 tire fill considerably more of the rear wheel opening.

The front fitment is the more aggressive of the two because of the +25mm offset. At the rear, the +43mm offset keeps the wider wheel slightly more tucked while still giving the car the rear heavy stance that works well on the S550 Mustang.

Because the suspension remains at stock height, the car retains its original ground clearance and everyday usability while gaining a much stronger wheel and tire presence.

Ride and Drivability

The wider 275 front tire gives the Mustang a larger front contact patch and a more immediate steering feel compared with narrower factory combinations. The 305 rear tire provides substantially more rubber at the back of the car, which suits the rear drive layout and gives the Mustang a more planted feel under acceleration.

The shorter sidewalls also sharpen steering response, although they can transmit more road texture through the chassis than a taller tire. Since overall tire diameter remains close to common factory sizing, the setup avoids making major changes to effective gearing or overall ride height.

Keeping the factory suspension also preserves the original suspension travel and daily driving characteristics while allowing the wider wheels and tires to create the visual change.

Fitment Dynamics Miami

Fitment Dynamics carries wheels, tires and suspension upgrades for Ford Mustang applications, including TSW wheel and tire packages. Our team can help determine the proper staggered wheel widths, offsets and tire sizes for S550 Mustang builds while accounting for suspension height, brake clearance and everyday drivability.

Customers can visit Fitment Dynamics in the Miami area for professional wheel and tire installation, fitment assistance and local pickup, or have their wheel and tire package shipped nationwide directly to their door.
